Firebolt Models Parts Catalog
2004

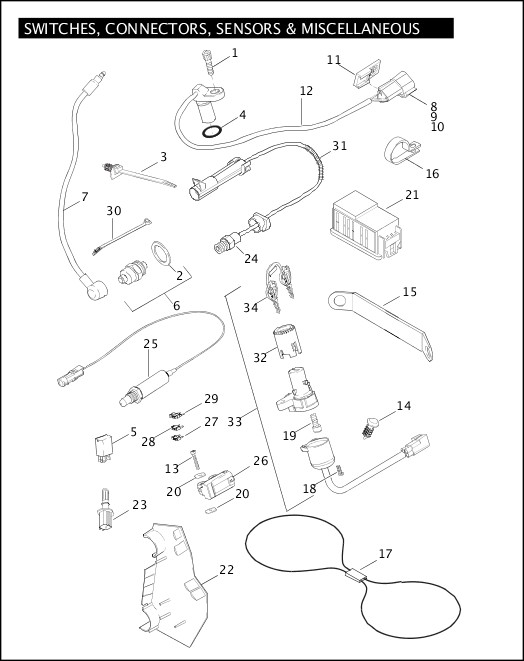

SWITCHES, CONNECTORS, SENSORS & MISCELLANEOUS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 3594 | SCREW | ALL | |
| 2 | 6288 | WASHER | ALL | |
| 3 | 10177 | CLIP, cable strap (2) | ALL | |
| 4 | 11140 | O-RING | ALL | |
| 5 | 31522-00C | RELAY, start ignition | ALL | |
| 6 | 33900-99 | SWITCH, neutral indicator, w/ 6288 | ALL | |
| 7 | 70227-99 | JUMPER, neutral indicator | ALL | |
| 8 | 72143-94 | SECONDARY LOCK, 3-way receptacle | ALL | |
| 9 | 72163-94GY | RECEPTACLE, 3-way plug (gray) | ALL | |
| 10 | 72190-94 | TERMINAL, pin (3) | ALL | |
| 11 | 72199-94 | ATTACHMENT CLIP | ALL | |
| 12 | 74431-01B | SENSOR, vehicle speed | ALL | |
| 13 | AN0808.3CZB | SCREW (2) | ALL | |
| 14 | C0033.02A8 | FASTENERS, tree, plastic (black) (7) | ALL | Feb 2017 |
| 15 | C0037.02A8 | CLAMP, nylon loop | ALL | Feb 2017 |
| 16 | C0045.02A8 | STRAP, rear wire harness mount | ALL | Feb 2017 |
| 17 | C0123.1AA | CABLE, security | ALL | |
| C2000.1AK | POUCH, tool kit (not illustrated) | ALL | ||
| C2024.1AS | TOOL KIT, w/ C2000.02A8, C2037.02A8, C2039.02A8, C2040.02A8, C2041.02A8A & C0123.1AA (not illustrated) | ALL | Feb 2017 |
|
| C2039.02A8 | WRENCH, allen T27 (not illustrated) | ALL | ||
| C2040.02A8 | WRENCH, hex, axle 7/8 in. (not illustrated) | ALL | Feb 2017 |
|
| C2041.02A8A | SCREWDRIVER, 2-in-1 (not illustrated) | ALL | Feb 2017 |
|
| C2043.1AS | WRENCH, spanner, shock (not illustrated) | ALL | Feb 2017 |
|
| 18 | CA0007.T | SCREW | ALL | |
| 19 | CA0016.02A8 | SCREW | ALL | Feb 2017 |
| 20 | CB0008.02A8 | WASHER (2) | ALL | Feb 2017 |
| 21 | L0073.1AA | TOP COVER, w/ label, fuse block (Prior to build date 10/15/2003) | ALL | Nov 2014 |
| Y0160.1AA | TOP COVER, w/ label, fuse block (Build date 10/15/2003 and later) | ALL | ||
| 22 | M0072.02A8 | WIRE GUARD, routing | ALL | Feb 2017 |
| 23 | P0138.K | SENSOR, air intake | ALL | |
| 24 | P1278.K | SENSOR KIT, engine temperature, w/ Y0195.4A8, Y0216.4A8, Y0217.4A8, Y0218.4A8 & Y0386.5AA | ALL | |
| 25 | S0130.02A8 | SENSOR, O2 | ALL | |
| 26 | S0131.02A8 | SENSOR, bank angle | ALL | Oct 2015 |
| 27 | Y0011.K | FUSE, 15A, EMC | ALL | |
| 28 | Y0016.T | FUSE, 7.5A (Prior to build date 10/15/2003) | ALL | |
| 72462-00 | FUSE, 10A (Build date 10/15/2003 and later) (5) | ALL | ||
| Y0195.4A8 | WIRE SEAL, wire harness side (not shown) | ALL | ||
| Y0216.4A8 | CONNECTOR, wire harness side (not shown) | ALL | ||
| Y0217.4A8 | TERMINAL, 16-18 gauge, wire harness side (not shown) | ALL | ||
| Y0218.4A8 | TPA (black) (not shown) | ALL | ||
| 29 | Y0211.K | DIODE (2) | ALL | |
| 30 | Y0303.2B | CABLE STRAP (27) | ALL | |
| Y0349.02A8 | CONDUIT ASSEMBLY, main harness (not illustrated) | ALL | ||
| Y0356.4 | CONNECTOR, single bullet (not illustrated) (10) | ALL | May 2010 |
|
| Y0357.3A | TERMINAL (not illustrated) (10) | ALL | May 2010 |
|
| 31 | Y0386.5AA | CONDUIT, engine temperature sensor | ALL | Jul 2015 |
| Y0602.02A8 | COMPLETE VEHICLE LOCK SET, w/ seat, ignition, fuel cap & key(s) | ALL | Feb 2017 |
|
| 32 | Y0723.T | HOUSING, ignition switch | ALL | |
| 33 | Y0724.02A8 | IGNITION ASSEMBLY, w/ key(s) | ALL | |
| 34 | Y0732.T | KEY SET, ignition (specify 4-digit key code) | ALL |
