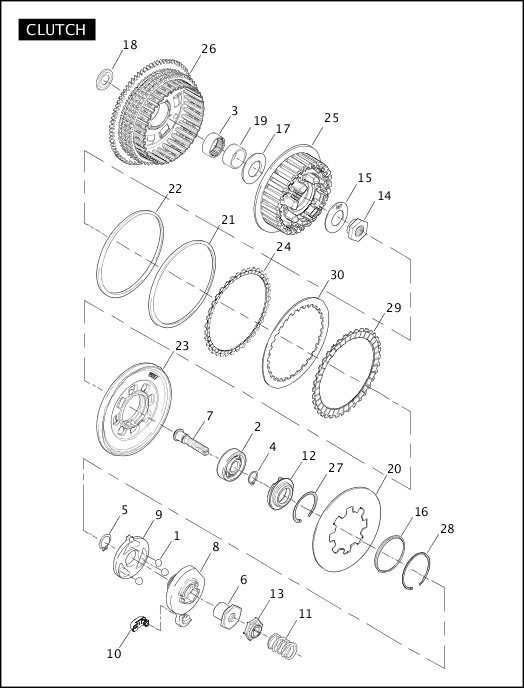

| 1 |
8873
|
BALL (3) |
XB12X |
|
| 2 |
8885
|
BALL BEARING |
XB12X |
|
| 3 |
9214
|
NEEDLE BEARING |
XB12X |
|
| 4 |
11046
|
RETAINING RING |
XB12X |
|
| 5 |
11250
|
RETAINING RING |
XB12X |
|
| 6 |
11730A
|
NUT |
XB12X |
|
| 7 |
11765Y
|
ADJUSTMENT SCREW |
XB12X |
|
| 8 |
25409-94B
|
RAMP, outer |
XB12X |
|
| 9 |
25453-87A
|
RAMP, inner |
XB12X |
|
| 10 |
34920-86A
|
COUPLING, clutch cable |
XB12X |
|
| 11 |
36715-94
|
SPRING, clutch adjustment |
XB12X |
|
| 12 |
36731-91
|
RELEASE PLATE ASSEMBLY, w/ 8885 |
XB12X |
|
| 13 |
36802-84B
|
LOCKPLATE, well type |
XB12X |
|
| 14 |
37495-91
|
NUT, main shaft |
XB12X |
|
| 15 |
37870-91
|
SPRING WASHER |
XB12X |
|
| 16 |
37872-90
|
SEAT, spring - inner |
XB12X |
|
| 17 |
37890-02
|
THRUSTWASHER, inner |
XB12X |
|
| 18 |
37891-02
|
THRUSTWASHER, outer |
XB12X |
|
| 19 |
37892-02
|
INNER RACE, needle bearing |
XB12X |
|
| 20 |
37934-06
|
SPRING, clutch |
XB12X |
|
| 21 |
37894-02
|
SPRING, damper |
XB12X |
|
| 22 |
37895-02
|
SEAT, damper spring |
XB12X |
|
| 23 |
37896-02
|
PRESSURE PLATE |
XB12X |
|
| 24 |
37897-02
|
FRICTION PLATE, narrow |
XB12X |
|
| 25 |
37898-02
|
CLUTCH HUB |
XB12X |
|
| 26 |
37899-02A
|
CLUTCH SHELL & SPROCKET, w/ 9214 |
XB12X |
|
| 27 |
37908-90
|
RETAINING RING |
XB12X |
|
| 28 |
37909-90
|
RETAINING RING |
XB12X |
|
| 29 |
37911-90
|
FRICTION PLATE, paper (7) |
XB12X |
|
| 30 |
37913-90
|
STEEL PLATE (7) |
XB12X |
|
