XB12X Ulysses Parts Catalog
2007

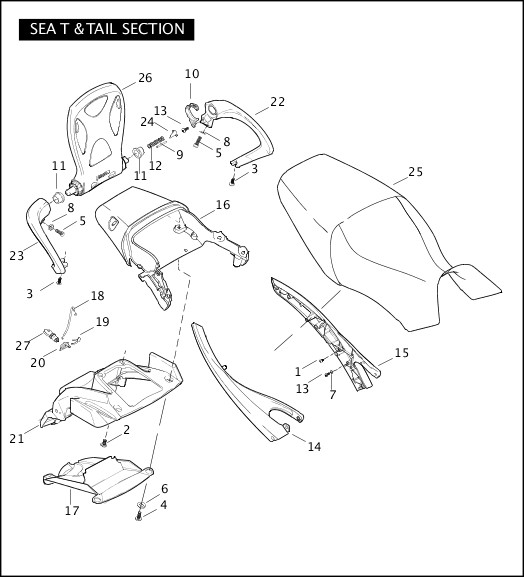

SEAT & TAIL SECTION
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0404.11CXVB | SCREW (5) | XB12X | Nov 2014 |
| 2 | AA0404.11CVB | SCREW (2) | XB12X | Nov 2014 |
| 3 | AA0406.11CXVB | SCREW (2) | XB12X | |
| 4 | AA0404.11CVB | SCREW (2) | XB12X | Nov 2014 |
| 5 | AA0508.2CXZB | SCREW (2) | XB12X | |
| 6 | BA0412.1BL | WASHER (2) | XB12X | Nov 2014 |
| 7 | BA0509.6 | WASHER (2) | XB12X | |
| 8 | BA0511.2Z | WASHER (2) | XB12X | |
| 9 | C0075.1AK | PIN | XB12X | Feb 2017 |
| 10 | C0083.1AK | COLLAR, tail rack | XB12X | Feb 2017 |
| 11 | C0091.1AK | BEARING | XB12X | Feb 2017 |
| 12 | C0092.1AK | SPRING | XB12X | Feb 2017 |
| 13 | CA0018.02A8 | SCREW | XB12X | |
| 14 | L0009.1AKYBQ | TAIL SECTION, right (magnesium tone) | XB12X | Feb 2017 |
| 15 | L0010.1AKYBQ | TAIL SECTION, left (magnesium tone) | XB12X | Feb 2017 |
| 16 | L0046.1AKYBQ | TAIL LOOP (magnesium tone) | XB12X | Feb 2017 |
| 17 | M0027.1AK | COVER, rear wire | XB12X | Feb 2017 |
| 18 | M0066.1AD | CABLE, seat lock | XB12X | Feb 2017 |
| 19 | M0067.02A8 | RETAINER, seat lock | XB12X | Feb 2017 |
| 20 | M0068.02A8 | PLATE, seat lock | XB12X | Feb 2017 |
| 21 | M0755.1AK | BRACKET, license plate | XB12X | Feb 2017 |
| 22 | N0008.1AKBYBQ | GRAB HANDLE, passenger, left (magnesium tone) | XB12X | Feb 2017 |
| 23 | N0009.1AKFYBQ | GRAB HANDLE, passenger, right (magnesium tone) | XB12X | Feb 2017 |
| 24 | N0018.1AK | DETENT, tail rack | XB12X | Feb 2017 |
| 25 | N0025.2AKYCE | SEAT, complete (black/orange) | XB12X | |
| N0025.2AKYW | SEAT, complete (black) | XB12X | ||
| 26 | N1016.1AK | TAIL RACK, w/ graphic | XB12X | Aug 2016 |
| 27 | Y0725.02A8 | LOCK, seat | XB12X |
